Description

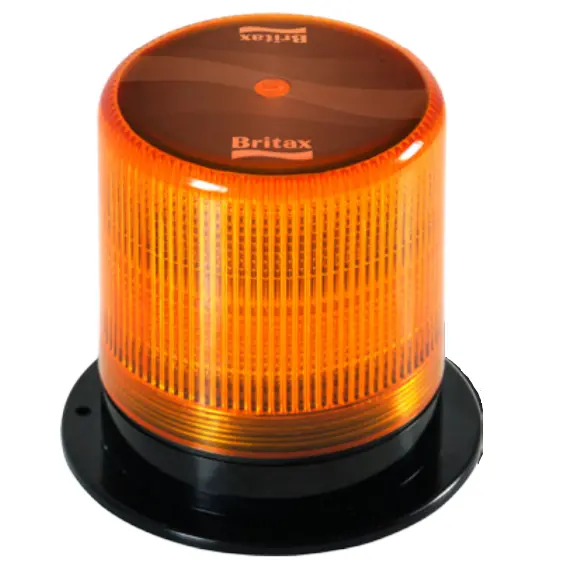

Introducing the Britax BF180 LED beacon! Featuring an impressive 700 Lumen of high intensity LED output packed into a compact and robust beacon with four selectable flash patterns.
These beacons are very robust and sealed to IP67 with no moving parts, ensuring long working life with no maintenance.
- Four selectable flash patterns including simulated rotate: internal selection of single flash, double flash, quadruple flash and simulated rotation to suit most applications
- Duplex high optic lens with six LEDs: new advanced high optic lens improves the visibility of the six LEDs while a lens top shield significantly increases daytime effective intensity, available in clear or amber lens with amber LEDs
- O-ring sealed polycarbonate lens and gel-filled die-cast alloy base: no moving parts makes this beacon very robust with high dust, moisture and vibration resistance, IP67
- Durable ABS plastic base with internal alloy heatsinking
- Bottom or side entry cable with mounting gasket: allows for different mounting options whilst keeping the underside of beacon sealed

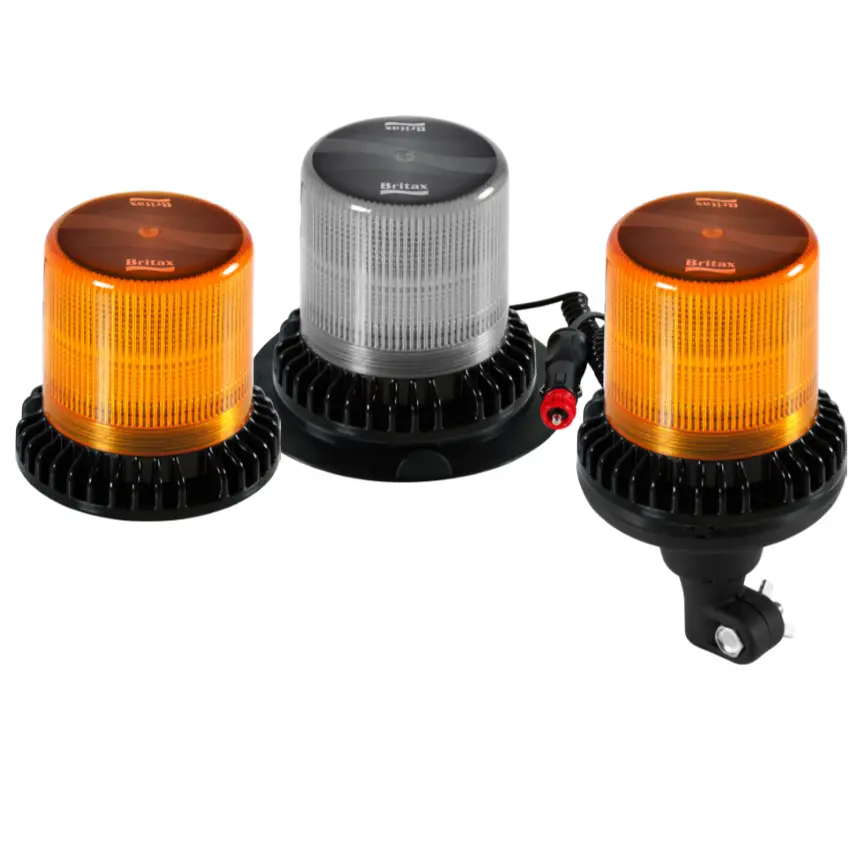

- Flange base version feature three hole mount with stainless steel fittings and nyloc nuts
- Suction magnetic base version features combination cigarette lighter and accessory (Merit) plug
- Pole mount version features UV stabilised silicone, DIN pole mountable, 90° flexi base
| Voltage |
10-30V Multivoltage |
|---|---|
| Amperage |
Max 0.65A @ 12VDC, Avg 0.4A @ 12VDC |
| Globe |
LED |
| Colour |
Amber, Clear |
| Lens |
Polycarbonate |
| Base |
ABS |
| Mounting |
DIN Pole, Three Bolt, Suction Magnetic |
| Series |
BF180 |
| Dimensions (mm) |
H 120 x Ø 128 |
| Approvals |
IP67 |
