Description

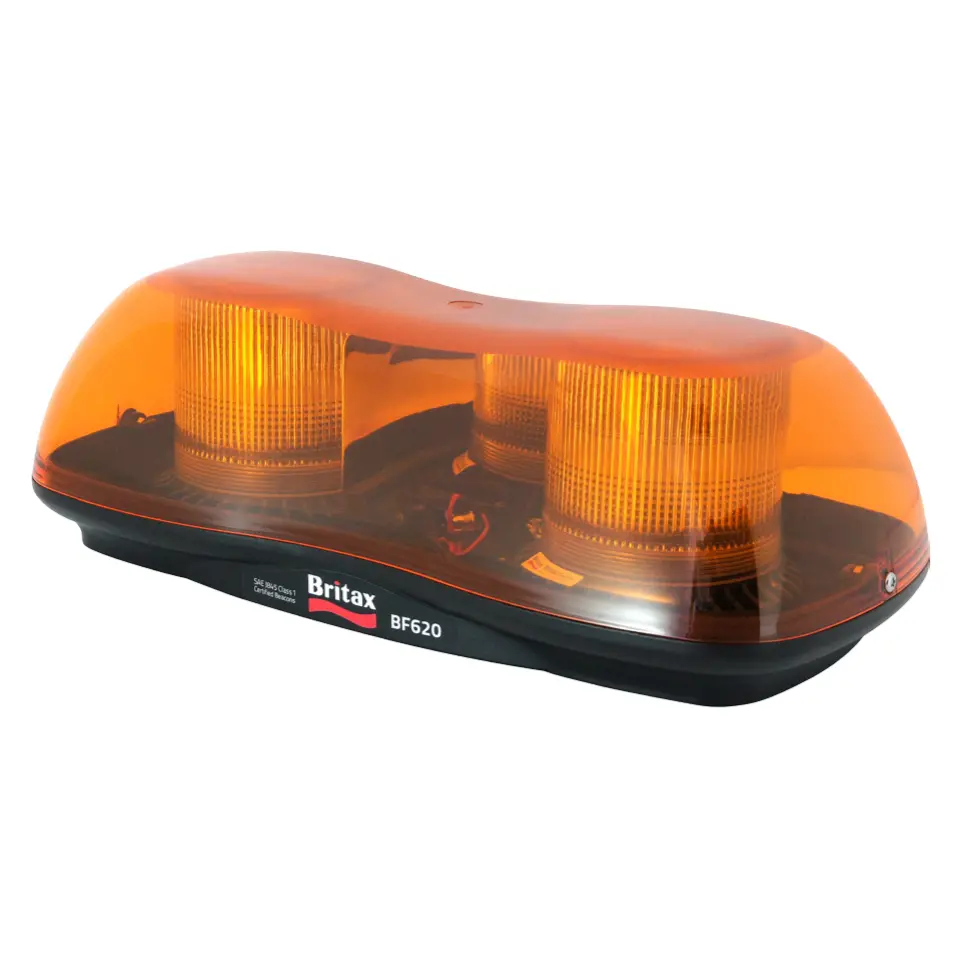

The Britax BF620 Series of LED twin beacons feature the same aerodynamic benefits of the original Britax 420 Series minibar range, with the added strength and durability of the die-cast alloy base. The die-cast alloy base works to heat sink the internal high powered LED beacons.
- Strong, UV resistant, electrostatically coated black die-cast alloy base
- Die-cast alloy base works to heat sink the internal high powered twin LED beacons
- Die-cast alloy base and polycarbonate lens sealed by one piece, triple blade rubber sealing gasket providing dust, water, high pressure washing and vibration resistance
- Die-cast alloy base has multiple mounting positions, knockouts provide different options, pads provided to help with sealing
- IP68 rated goretex breather in base with IP67 rated internal beacons
- Contains twin SAE J845 Class 1 beacons (BF600 LED beacons) with the highest EMC rating possible
- Set flash patterns by removing outer lens then BF600 lens
- Four selectable flash patterns with each beacon including simulated rotate: internal selection of single flash, double flash, quadruple flash and simulated rotation to suit most applications
- Beacon features duplex high optic lens with six custom designed LEDs: advanced high optic lens improves the visibility of the six custom designed LEDs over greater distances
- Lens top shield significantly increases daytime effective intensity
| Voltage |
10-30V Multivoltage |
|---|---|
| Amperage |
Max 4.56A @ 12VDC, Avg 2.7A @ 12VDC |
| Globe |
LED |
| Colour |
Amber, Clear |
| Lens |
Polycarbonate |
| Base |
Die-cast Alloy |
| Mounting |
Eight Bolt |
| Series |
BF620 |
| Dimensions (mm) |
H 135 x D 205 x W 420 |
| Approvals |
SAE Class 1, EMC ISO13766, IP67 |
