Description

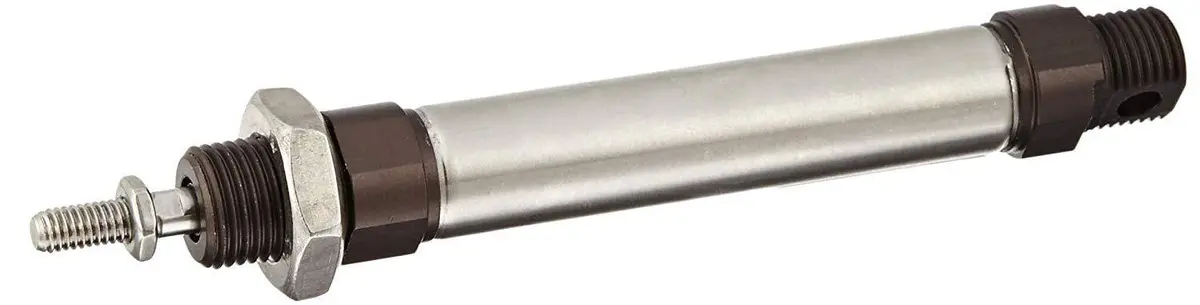

Pneumatic Cylinder- P1A-S020DS-0025, The Parker Pneumatic Roundline Cylinder 20mm Bore, 25mm Stroke, P1A Series, Double Acting – P1A-S020DS-0025 P1A range of cylinders are intended for use in a wide range of applications. The cylinders are particularly suitable for lighter duties in the packaging, food and textile industries.
Hygienic design, the use of corrosion-resistant materials and initial lubrication with our food-grade grease make the cylinders suitable for food industry applications.
Product Details Pneumatic Cylinder- P1A-S020DS-0025
Parker P1A 10-25mm Ø Cylinders
Outward Thrust and Return Thrust figures quoted are at 6 bar.
P1A 10-25mm Diameter & Sensor
Specifications
|
Length |
150mm |
|
Maximum Operating Pressure |
10 bar |
|
Rods |
Single |
|
Manufacturer Series |
P1A |
|
Width |
23.8mm |
|
Stroke |
25mm |
|
Brand |
Parker |
|
Dimensions |
150 x 23.8 x 23.8mm |
|
Bore |
20mm |
|
Port Connection |
G 1/8 |
|
Minimum Operating Temperature: |
-20°C |
|
Maximum Operating Temperature: |
+80°C |
|
Action |
Double |
|
Cushioning Type |
Buffer |
|
Height |
23.8mm |
Pneumatic Cylinder- P1A-S020DS-0025
