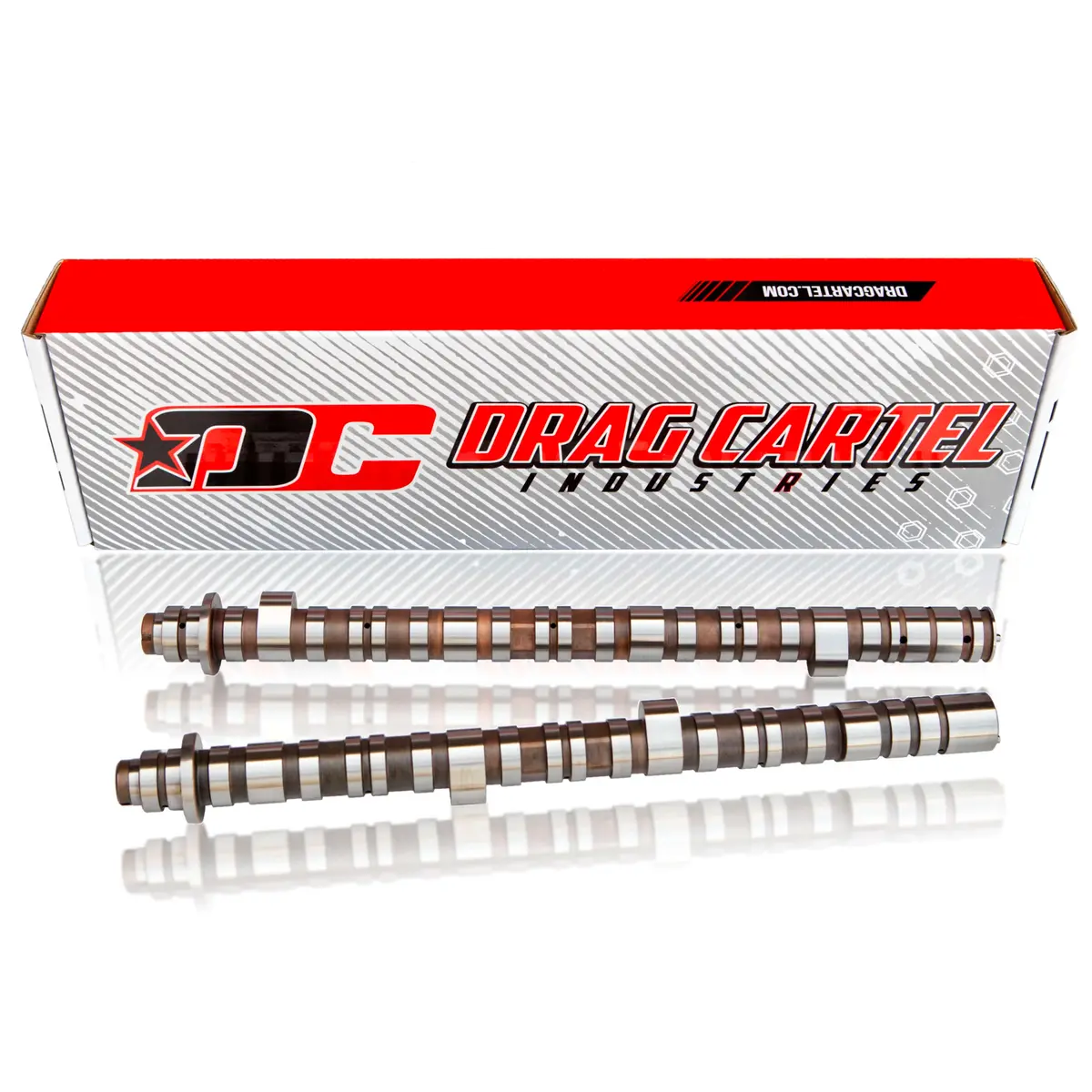

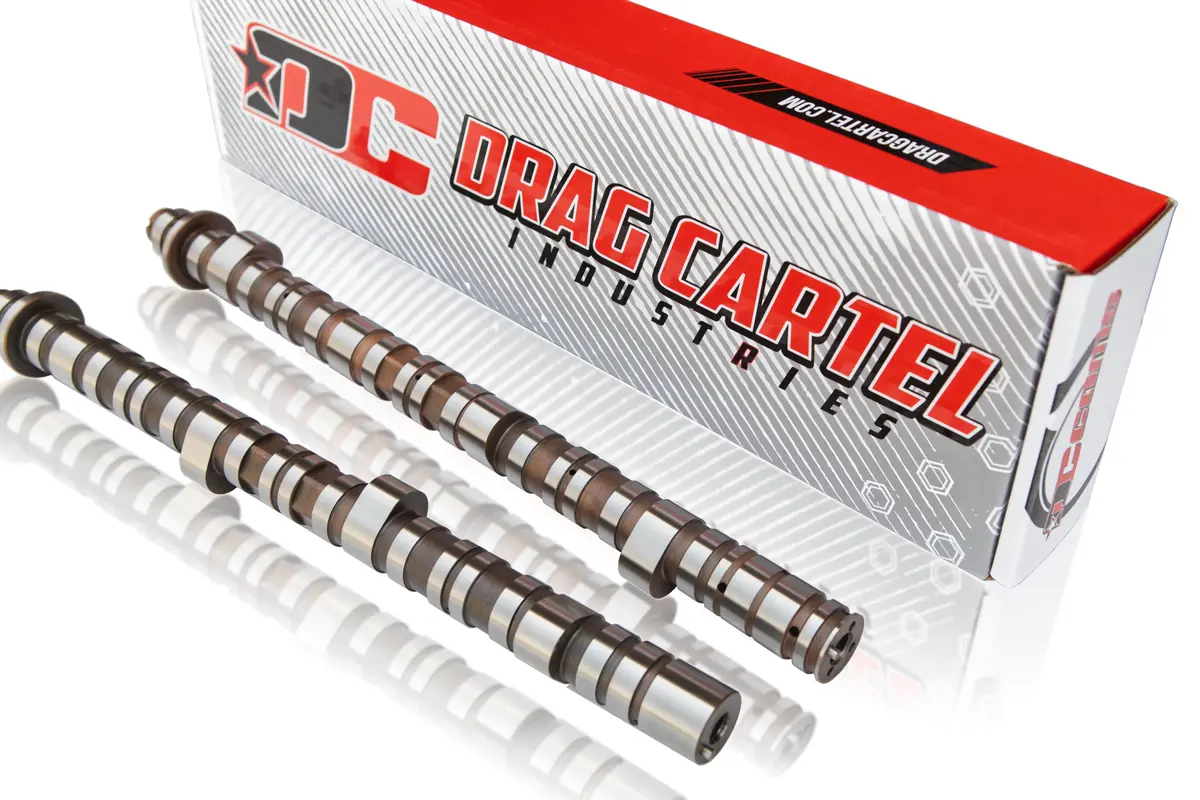

Drag Cartel 004T Single Lobe VTEC Killer Turbo Cams
Are you building an extreme forced-induction Honda K-series engine for professional drag or track racing? The Drag Cartel 004T Single Lobe VTEC Killer Turbo Cams are engineered to deliver maximum power and stability under the high-cylinder pressures of turbocharging. By utilizing a fixed single-lobe profile, these cams eliminate VTEC crossover instability, giving tuners the precise control needed for competition.
Why are 004T Single Lobe Cams ideal for Turbo Racing?
These cams are specifically designed for high-power, VTEC-deleted K-series setups, providing reliability and extreme performance potential.
- VTEC Elimination: They are Single Lobe (VTEC Killer) cams, which remove the VTEC mechanism. This simplifies the valvetrain and ensures the valves follow a single, aggressive, high-lift profile at all times, optimized for forced induction.
- Extreme Rigidity: Manufactured from aerospace-grade 8620 steel billet material, they offer the highest level of stiffness, which is crucial for reducing valve float and handling extreme engine demands.
- Untapped Potential: Capitalizes on the K-series roller rocker assembly to maximize RPM potential and deliver a faster-acting cam profile.
Camshaft Specifications and Requirements
The 004T profile is aggressive and requires specialized components for proper and safe operation.
– Material: All-New 8620 Billet Steel
– Intake Lobe Specs:
- Lift: 14.5 mm
- Duration @ 0.050″: 0.275″
– Exhaust Lobe Specs:
- Lift: 13.2 mm
- Duration @ 0.050″: 0.272″
Required Supporting Modification (CRITICAL):
VTEC Killer System: These cams require the Drag Cartel VTEC Killer Roller Rocker system (sold separately) for installation and function.
Installation Torque Specifications
Ensure precise and reliable installation by adhering to the following factory torque values:
- Intake Cam Gear Bolt: 83 lb-ft
- Exhaust Cam Gear Bolt: 51 lb-ft
- Pulse Plates: 29 lb-ft
Engine Compatibility and Fitment
The Drag Cartel 004T Turbo Cams are compatible with many popular K-Series platforms often used in turbo builds.
| Make | Model | Engine Code | Years |
| Acura | RSX Type S 2.0 | K20A2 | 2002–2004 |
| Acura | RSX Type S 2.0 | K20Z1 | 2005–2006 |
| Acura | TSX 2.4 | K24A2 | 2004–2008 |
| Honda | Accord 2.4 | K24A8 | 2006–2007 |
| Honda | Civic Si 2.0 | K20Z3 | 2006–2011 |
| Fits Both K20 & K24 Engines up to 8th Generation Honda Civics |
Incompatibility Warning:
These cams are NOT compatible with the following engines:
- K24Z7 Block / Engines
- K24W1 Block / Engines
Ready for extreme turbo power? Upgrade to the Drag Cartel 004T Cams and dominate the racetrack!
