Drag Cartel K-Series Performance Camshafts – Stage 2 (004.5)

Description

Drag Cartel 004.5 Racing Camshafts for K-Series

Are you pursuing the absolute maximum naturally aspirated power from your Honda K-series engine? The Drag Cartel 004.5 Camshafts are the result of rigorous, high-end race and dyno testing, engineered to deliver the most aggressive performance profile available for dedicated all-motor racing applications. These cams are the key to unlocking the K-series engine’s full, untapped potential.

Why are 004.5 Cams built for extreme performance?

The 004.5 cams feature an extremely aggressive profile that maximizes airflow and top-end horsepower, making them essential for serious track use and competition builds

• Ultimate Horsepower: The high lift and duration specifications are designed for peak naturally aspirated performance, ensuring maximum airflow through the cylinder head.
• Aerospace-Grade Rigidity: Constructed from 8620 steel billet material, these cams provide superior strength and stiffness, which is crucial for reducing valve float and maintaining stability at sustained, extended RPM ranges.
• Precision Engineering: CNC-ground profiles ensure accuracy and faster valve action, taking full advantage of the K-series roller rocker design.

Camshaft Specifications and Requirements

The Stage 004.5 Cams are dedicated race components and absolutely require a fully upgraded valve train for safe and reliable operation.

• Material: All-New 8620 Billet Steel
• Intake Lobe Specs:
  • Lift: 14.5 mm
  • Duration @ 0.050″: 0.276″
• Exhaust Lobe Specs:
  • Lift: 13.7 mm
  • Duration @ 0.050″: 0.274″

Required Upgrades (CRITICAL):

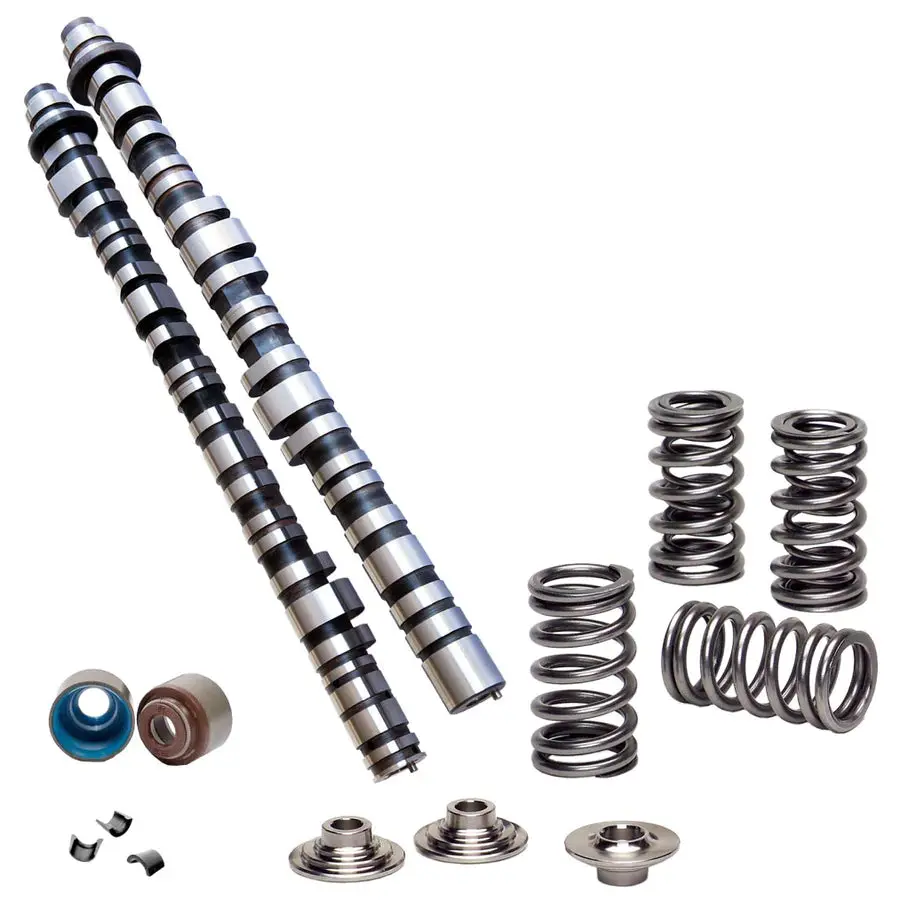

Valve Train: Due to the extreme lift and duration, an upgraded valve spring and retainer combination is mandatory. We offer the Supertech SPR-H1021D 92lb Spring (Optional combo available) to safely manage these aggressive profiles.

Installation Torque Specifications

Ensure precise and reliable installation by adhering to the following factory torque values:

• Intake Cam Gear Bolt: 83 lb-ft
• Exhaust Cam Gear Bolt: 51 lb-ft
• Pulse Plates: 29 lb-ft

Fitment and Engine Compatibility

The Drag Cartel 004.5 Racing Cams are compatible with many popular K-Series platforms used in high-performance builds.

Compatible Engines and Models:
