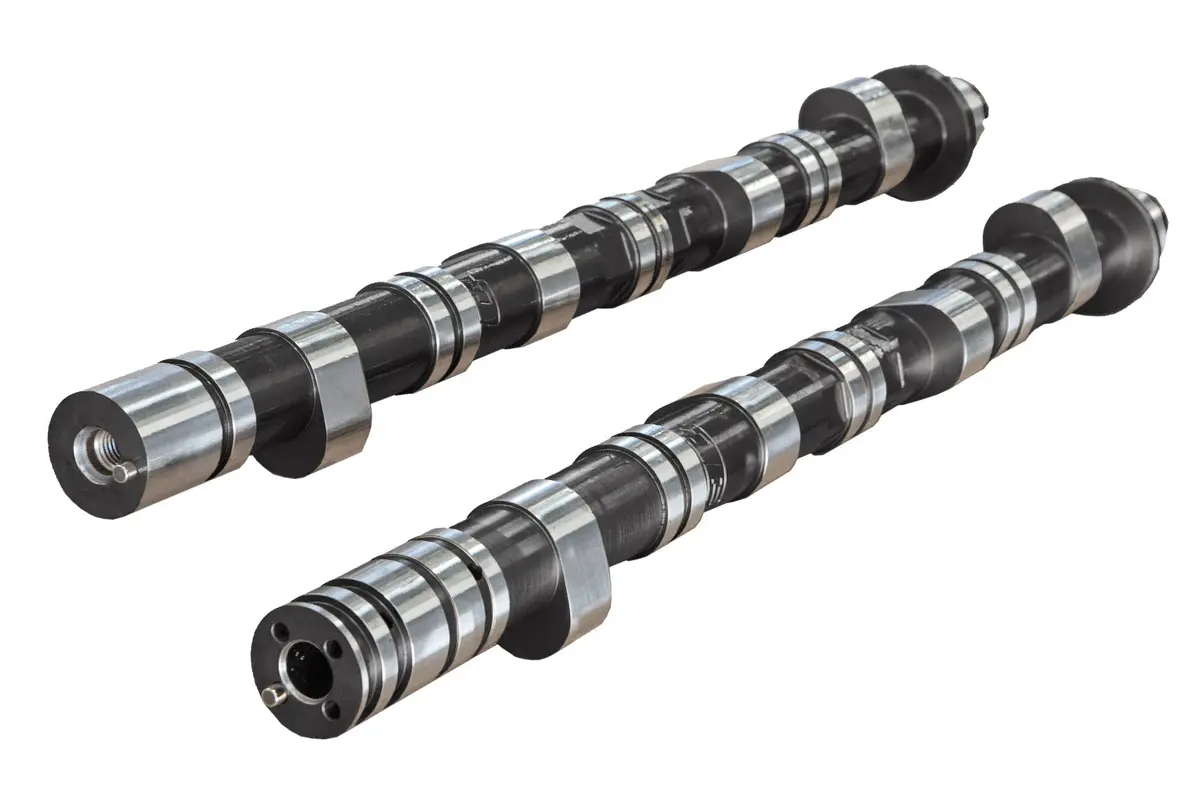

Elite Pro K-Series Single-Lobe Camshaft – Model 002

Description

Drag Cartel ELITE PRO 002 K Killer Single Lobe Camshafts

Are you building an uncompromising K-series engine dedicated to competition racing or extreme horsepower demands? The Drag Cartel ELITE PRO 002 K Killer Camshafts are engineered for the motorsports community. Constructed from premium Tool Steel, these single lobe cams are designed to deliver maximum stability, the highest possible lift/duration, and reliable performance at sustained, extreme RPMs by deleting the factory VTEC system.

Why Choose ELITE PRO Single Lobe K Killer Cams?

The K Killer system eliminates the mechanical complexity and limitations of VTEC, replacing it with a single, aggressive profile that is optimized for all-out racing power.

• VTEC Elimination: The single-lobe design removes the VTEC crossover, providing a fixed, optimized race profile that is essential for maximizing horsepower in highly tuned or turbo K-series engines.
• Ultimate Rigidity: Constructed from ALL NEW Tool Steel Material, offering superior stiffness that significantly reduces valve float and ensures valvetrain stability even at the highest RPM ranges.
• Maximum Profile: These cams feature an extremely aggressive lift and duration profile, CNC ground on a state-of-the-art Landis Cam grinder for ultimate precision and power.

Camshaft Specifications and Requirements

The 002 K Killer profile is one of the most aggressive available and absolutely requires the supporting VTEC Killer valvetrain components.

• Material: All-New Tool Steel Material
• Intake Lobe Specs:

Lift: 15.9 mm

Duration @ 0.050″: 0.282″

• Exhaust Lobe Specs:

Lift: 14.9 mm

Duration @ 0.050″: 0.280″

Required Supporting Modification (CRITICAL):

VTEC Killer System: These cams require the Drag Cartel VTEC KILLER Roller Rocker system (sold separately) for proper installation and function.

Installation Torque Specifications

Ensure precise and reliable installation by adhering to the following factory torque values:

• Intake Cam Gear Bolt: 83 lb-ft
• Exhaust Cam Gear Bolt: 51 lb-ft
• Pulse Plates: 29 lb-ft

Engine Compatibility and Fitment

The ELITE PRO 002 Cams are compatible with the most popular K-Series performance engines.
