Description

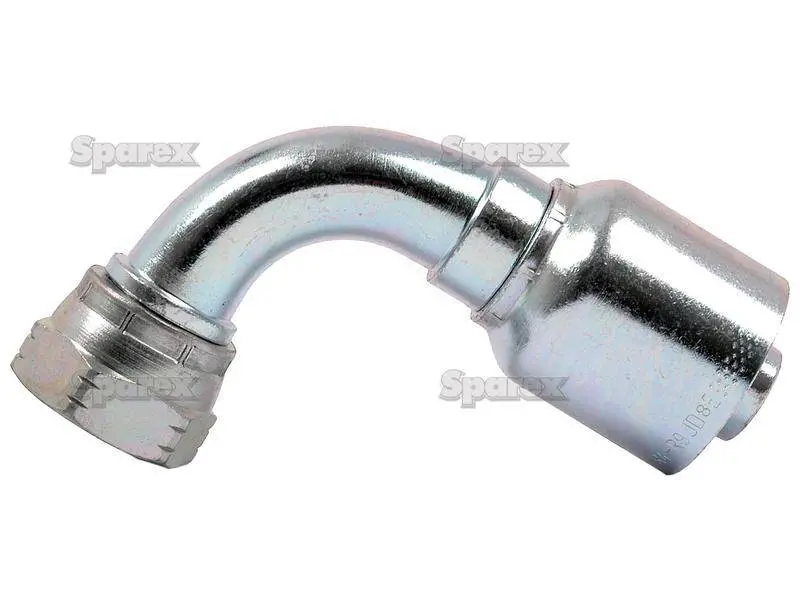

Female BSP Parallel Pipe Swivel 60° Cone/90° Elbow 1B270-8-8
Parker’s Parkrimp No-Skive medium pressure fittings – 46 series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hydraulic hose failure caused by skiving too long or short.
TECHNICAL CHARACTERISTICS
| PORT TYPE |
BSP |
| PORT SIZE | 1/2 |
| HOSE I.D. (SIZE) | -8 |
| HOSE I.D (DN) | 12 |
| HOSE I.D (INCH) | 1/2 |
| HOSE I.D (MM) | 12.7 |
| STYLE | Parker Female BSP Parallel Pipe Swivel 60° Cone/90° Elbow 1B270-8-8 |
| PORT SIZE | 1/2 |
| SHAPE | 90° Elbow |
| MATERIAL | STEEL |
| CONNECTION TYPE | Female |
| CONNECTION THREAD SIZE (INCH) | 1/2 |
| QUANTITY | 2 |
| WEIGHT | 0.29 |
Female BSP Parallel Pipe Swivel 60° Cone/90° Elbow 1B270-8-8 is available in Nigeria.
