Msd 8-Plus Digital Ignition Controller – Advanced Timing Control Msd7805

Description

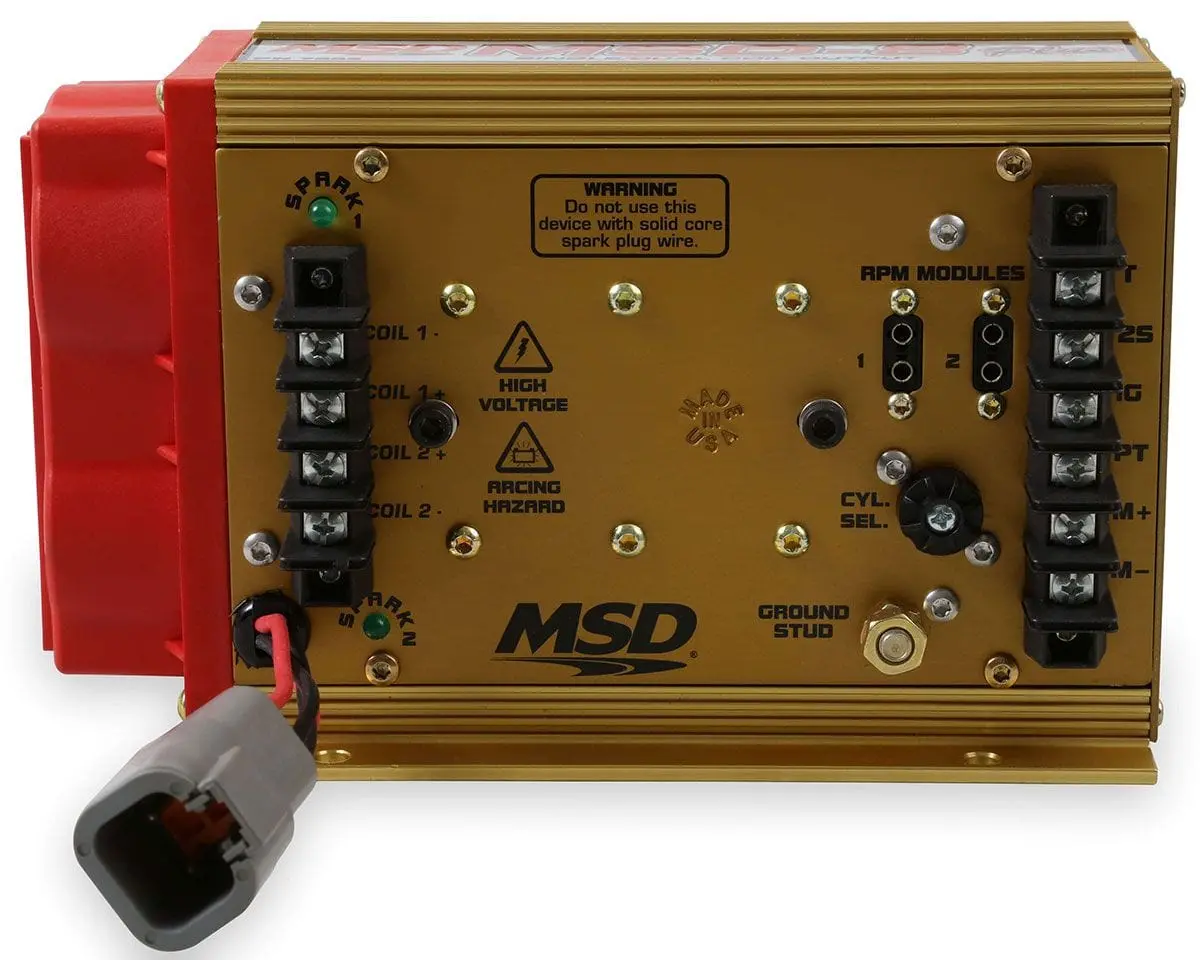

MSD 8-Plus Ignition Control

Capacitive/Inductive discharge, w/2 Step Rev Control

MSD7805

D7805

Unmatched spark outputBuilt-in 2-Step Rev ControlCompatible for 4, 6 and 8-cylindersWorks on single or dual coil output systemsThe MSD 8-Plus Ignition produces the same extreme output of the original 8-Series, yet is now in a smaller housing with improved efficiency and internal components. One distinct change is now a built-in 2-Step Rev Control. Now you can switch between two rev limits without extra wiring or housings. For those that are looking for a dual fire MSD 8, the new 8-Plus is all you need. Our engineers were able to deliver an ignition that is capable of firing two coils at once for those extreme racers using dual plug race setups.Operating SpecificationsSpark Energy: 315-345 millijoules/SparkPrimary Voltage: 480 VoltsSecondary Voltage: 50,000 VoltsSpark Series Duration: 20° Crankshaft RotationR PM Range: h 14.4 VoltsVoltage Required: 12 – 18 Volts, Negative GroundCurrent Draw: 36 Amps at 12,000 RPMWeight and Size: 4.85 lbs., 8.25″L x 3.75″W x 5.75″HTested with Pro Power Coil PN MSD8201
