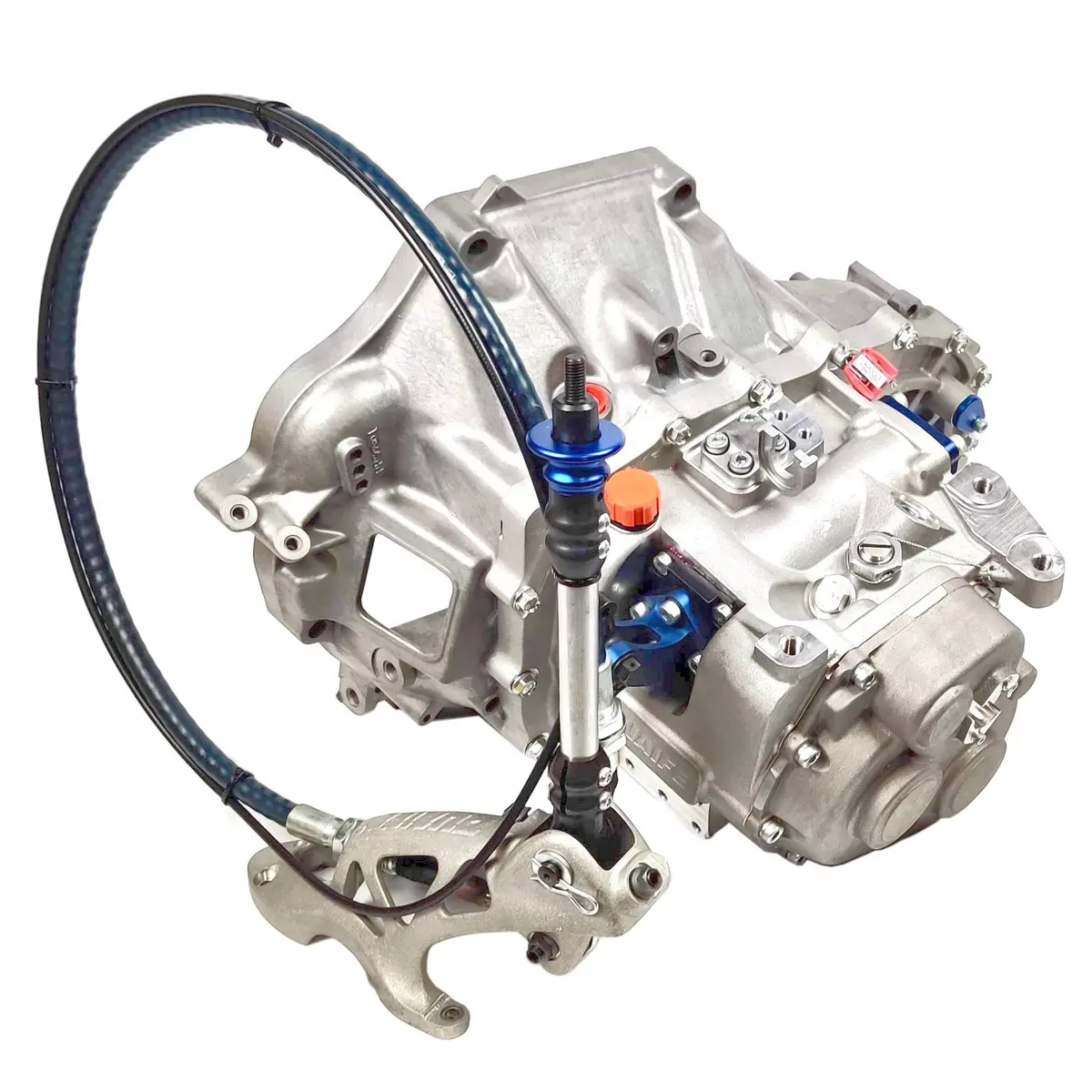

Quaife E8J V2 Sequential Gearset Transmission – Fully Assembled, Front-Wheel Drive, Naturally Aspirated

Description

K-Series Sequential Assembled Transmission E8J V2 – FWD With OEM Housing

QKE8J V2 is a 5-speed sequential gear kit for the EP3 and FN2 versions of the Honda Civic Type R as well as the DC5 Integra. Ideally suited to circuit racing, drag racing and rally use it’s designed as a direct replacement for the standard six-speed H-pattern Honda transmission.

QKE8J V2 features a replacement Quaife outer gearbox case incorporating an additional support bearing between 4th and 5th gear. A compact, drum style sequential gearchange mechanism and an open face dog design ensure an ultra rapid, positive gear sequential shift.

QKE8J V2 re-uses the original EP3/FN2/DC5 bellhousing half of the transmission casing, enabling the retention of the Honda clutch, differential, driveshafts and mounting points. Wide straight cut (spur) close-ratio gears minimize transmission losses and offer a choice of rally, race or drag race gearing.

There is also the choice of a helical set for road and track day applications.

Key technical features of the QKE8J five-speed Acura / Honda K-series EP3/FN2/DC5 sequential gear kit include:

– Strengthened Outer Casing And Five Wider Gears

– Ultra Fast Sequential Gearshift With Straight Cut or Helical Close-Ratio Gears

– Retains Stock EP3/FN2/DC5 Clutch, Diff, Driveshafts And Mounts

– Optional LED Digital Gear Position Indicator Available

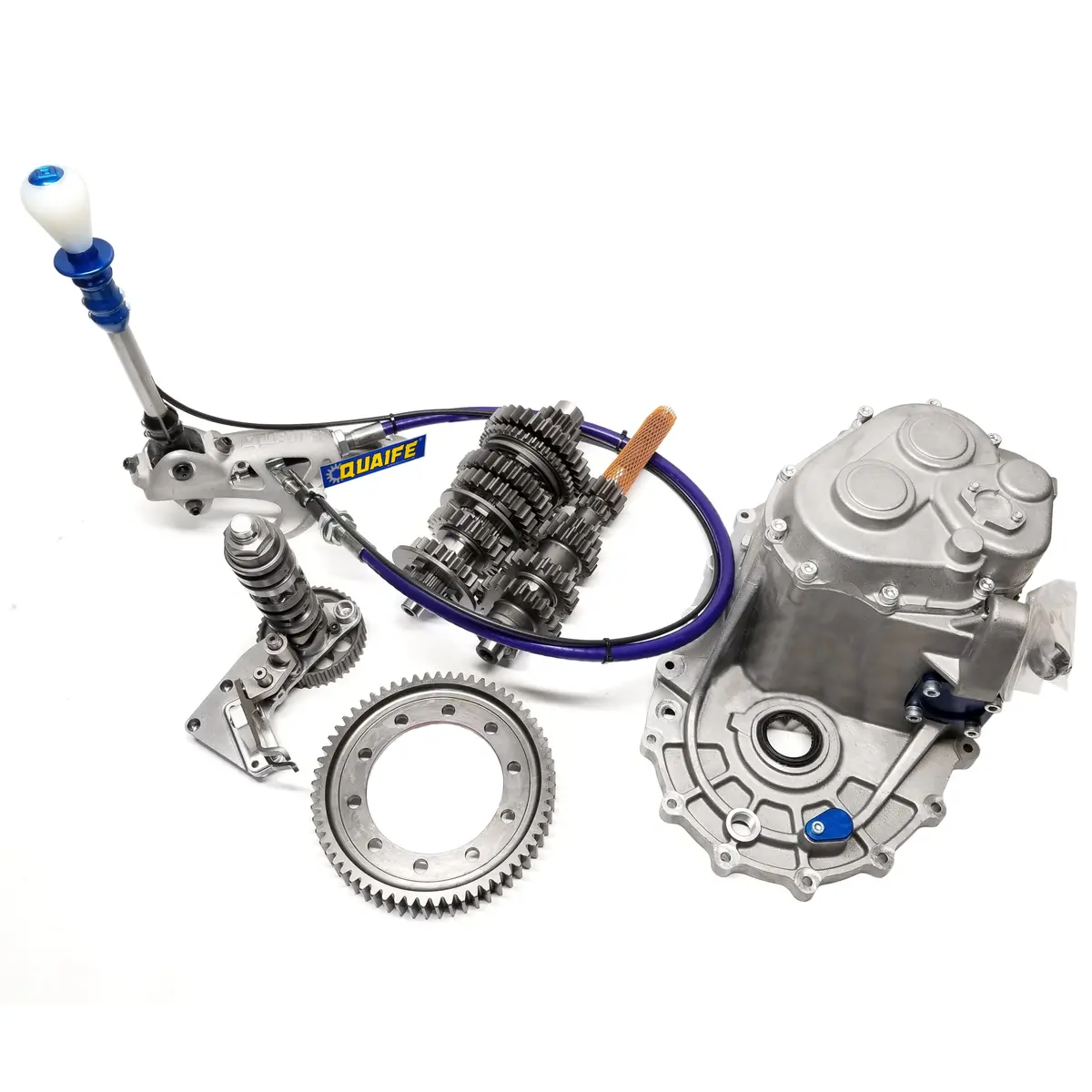

PLEASE NOTE: The Quaife QKE8J package includes the new transmission housing, gear lever and cable

Drag Gear Set Ratios

1ST: 3.100
2ND: 2.067
3RD: 1.611
4TH: 1.333
5TH: 1.136
Final Drive: 3.8 OR 4.1
