Quaife Rally-Style Sequential Gearset with 3.8 Final Drive – Outlaw All-Motor Configuration

Description

QUAIFE SEQUENTIAL GEARSET RALLY 3.8 FD (OUTLAW ALL MOTOR)

QKE8J V2 is a 5-speed sequential gear kit for the EP3 and FN2 versions of the Honda Civic Type R as well as the DC5 Integra / RSX. Ideally suited to circuit racing, drag racing and rally use it’s designed as a direct replacement for the standard six-speed H-pattern Honda transmission.

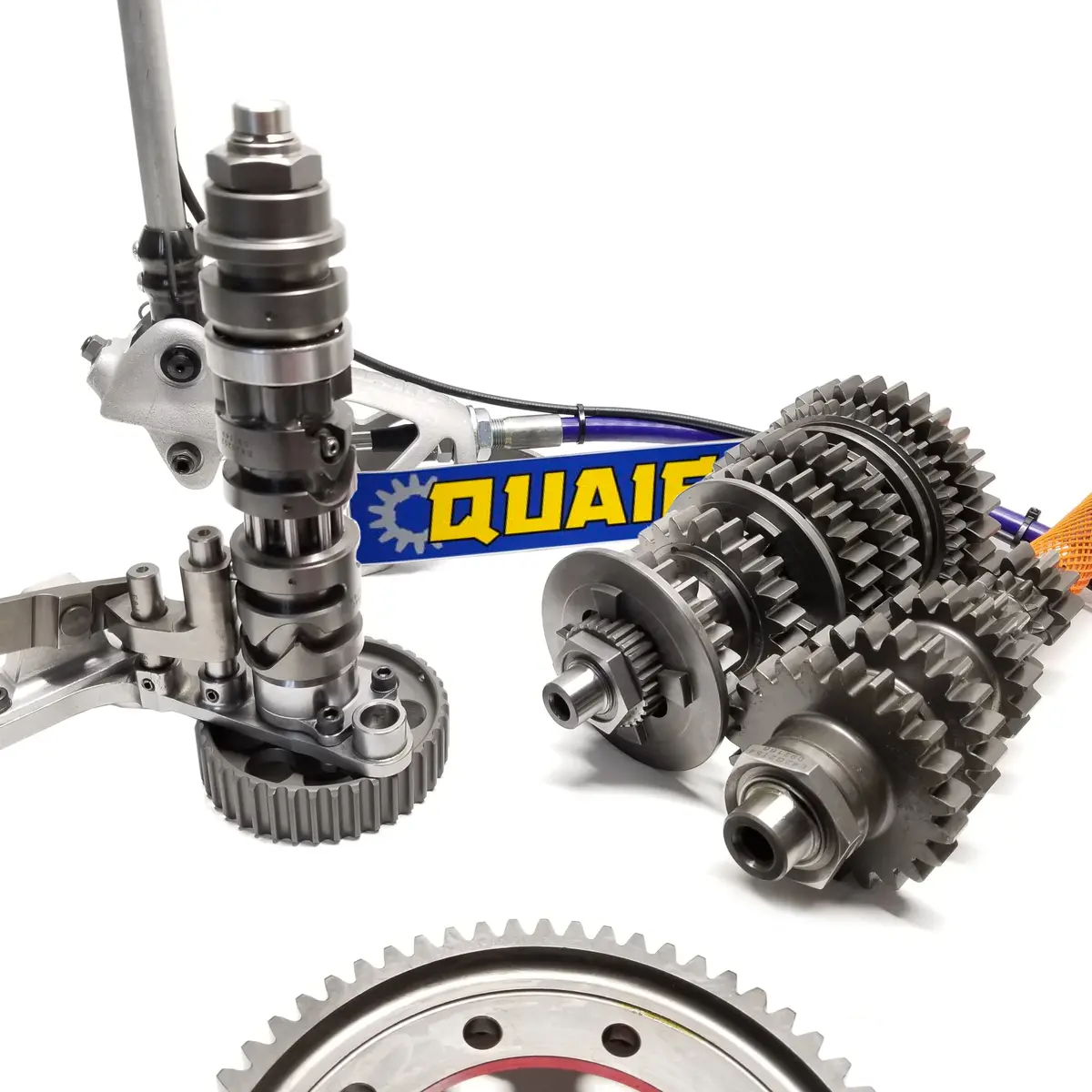

QKE8J V2 features a replacement Quaife outer gearbox case incorporating additional support bearing between the 4th and 5th gear. A compact, drum-style sequential gearchange mechanism, and an open-face dog design ensure an ultra-rapid, positive gear sequential shift.

QKE8J V2 re-uses the original EP3/FN2/DC5 bellhousing half of the transmission casing, enabling the retention of the Honda clutch, differential, driveshafts, and mounting points. Wide straight cut (spur) close-ratio gears minimize transmission losses and offer a choice of rally, race or drag race gearing. There is also the choice of a helical set for road and track day applications.

Key technical features of the QKE8J five-speed Honda EP3/FN2/DC5 sequential gear kit include: –

• Strengthened outer casing and five wider gears
• Ultra-fast sequential gearshift with straight cut or helical close-ratio gears
• Retains stock EP3/FN2/DC5 clutch, diff, driveshafts and mounts
• Optional LED digital gear position indicator available
• Quaife ATB for standard driveshafts (QDF9U)

PLEASE NOTE: The Quaife QKE8J package includes the new transmission housing, gear lever, and cable.

*Version 2 Update* We are now supplying the QKE8J Version 2 which has been updated with a revised shift mechanism that incorporates the ability to connect a pneumatic shift system directly to the gearbox from the factory.

Drag Gear Set Ratios

1ST: 3.100
2ND: 2.067
3RD: 1.611
4TH: 1.333
5TH: 1.136
Final Drive: 3.8 OR 4.1
