Description
It’s time, you know it – we know it. The 4 lug needs to go and lucky for you we’ve got the kit to start you off.

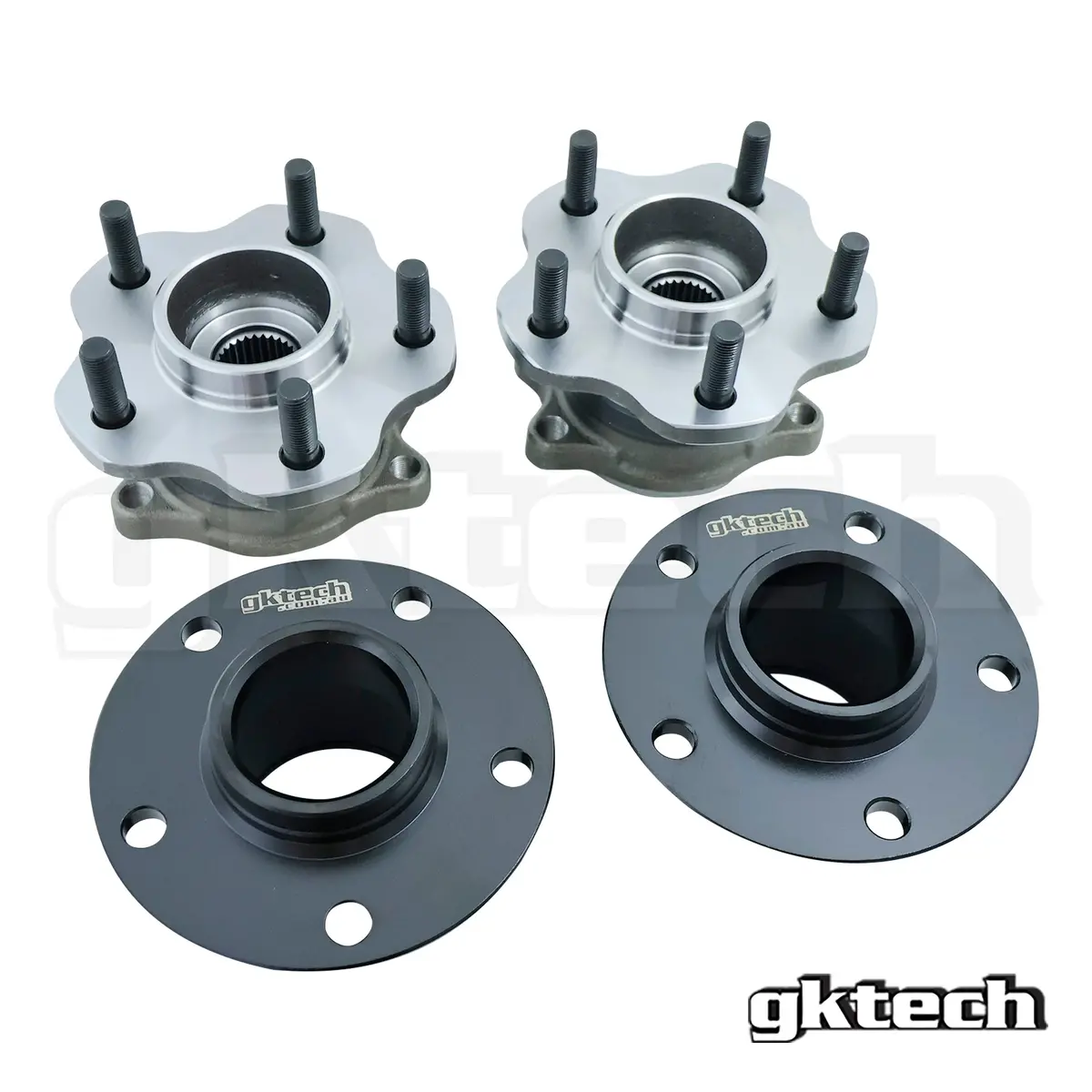

The GKTECH CNC machined Billet Chromoly 4 to 5 Lug Front Conversion Hubs are a direct replacement of the OEM hub and are designed to have the OEM snap ring and wheel bearing able to be swapped over. These Front Hubs take your S Chassis from 4×114.3 to 5×114.3 allowing a new range of brake upgrades and wheel choices.
The 5 Stud Rear Hubs are a replacement of the OEM S14 240SX / S15 Rear Hub Assembly which are a direct bolt on to your S13 240SX rear knuckles.
Testing for all our hubs consist of cyclical loading through a range of real world load cases including extreme high loads to simulate impacts, up to 800kg of load (equivalent to a total car weight of 3200kg). Over 900hrs of total loaded running time, 70+ days @ 12hrs a day whilst monitored for temperature and vibration throughout the testing and MORE!
Features:
– Converts from 4×114.3 to 5×114.3 PCD
– Grade 10.9 M12x1.25 +20MM 12.8mm front studs (NOT installed)
– Grade 10.9 M12x1.25 OEM 14.3mm rear studs (PRE installed)
– Rear OE Quality bearings, seals and quality SHELL grease pre installed
– Fully serviceable with rear hubs and bearings available separately
Note: Sold in PAIRS
Note 2: Front bearings are NOT included – these are designed to be used with OEM bearings
Note 3: ABS ring and SNAP ring are not NOT included
